POLY PANEL 250W-275W for residential using,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers

Author:senwei   Date:2024-04-13

Main Parameter:

Why Solar Energy Is One of The World’s Hottest Industries?

1. Solar offers better return
One of the famous investigating study found that installation in solar pane systems beats investment in a stock market investment fund.The study which was funded by the Department of Energy, also found that energy generated from solar panels is cheaper than buying energy from local utilities in 42 of 50 cities in America. Although they require considerable upfront capital as compared to conventional energy installations, solar panels have a payback system that enables consumers to rid themselves of energy utilities completely in the course of time.From an economic and profitability standpoint, solar offers better returns than conventional electric companies.


2. The cost of solar energy has declined
From a consumer standpoint, the main hindrance to greater solar adoption is related to costs. Conventional electric companies are vertically integrated. This means that they own elements of the electricity generation process and, consequently, pass on those costs to consumers. In some cases,they also pass on litigation costs to consumers. As a result, electric bills have trended upward.The reductions have been made possible by declines in cost of manufacturing hardware of solar PV system. With development of new technology and greater customer traction, the price of making solar panels is expected to go down further in the World.


3. Solar is good for the economy
Growth of the solar industry has been good for the World's economy. According to a report from Solar Foundation, the solar industry added workers almost 20 times faster than the overall World's economy.

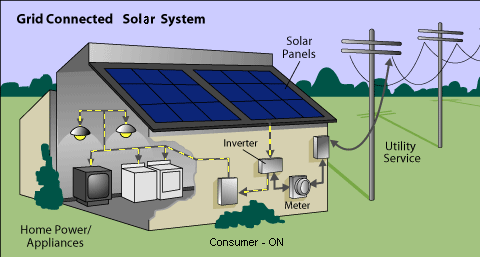

System One: Solar Grid Connected System For Household - Power for self-using, extra power sell to Grid Network for Benefits

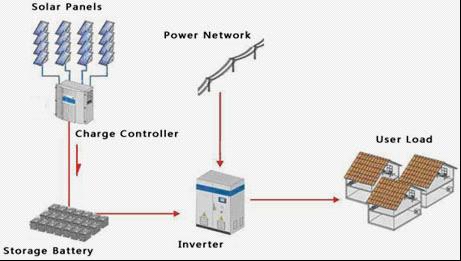

System Two: Home Smart Solar Grid-off System With Battery Storage System - Distribute Solar Power For Charger Storage Energy

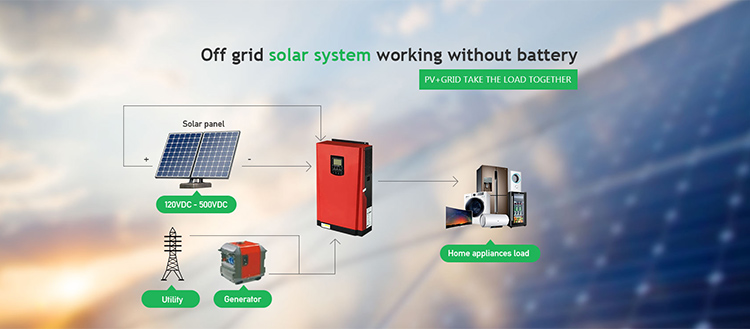

System Three: Home Smart Solar Grid-off System Without Battery Storage System - PV + Grid To Take The Loads Together



The detailed technical parameters:

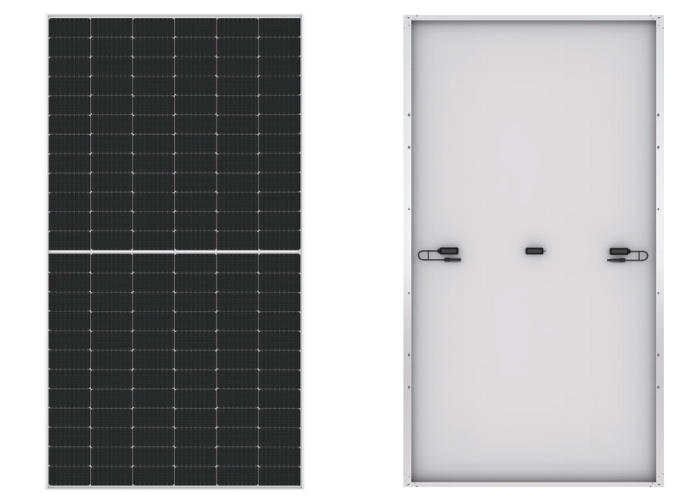

-GHSA250-60P Polycrystalline Silicon Solar Panel


Module Characteristics:

Note: the specifications are obtained under the Standard Test Conditions (STC):1000W/ m? solar irradiance, 1.5 Air Mass, and cell temperature of 25Degrees C




Specification

Model Characteristics

Module

GHSA250-60P

Open circuit voltage (V)

38.16

Maximum power voltage (V)

31.8

Short circuit current (A)

8.49

Maximum power current (A)

7.86

Maximum power (Wp)

250Wp

Cell

Polycrystalline Silicon Solar Cells

156mm x 156mm

Number of cells (Pcs)

60(6*10)

Size of module (mm)

1630×980×46mm

Weight per piece (kg)

19.5

Limits

Operation Temperature

`-40C------+85 degree C

Maximum system voltage (V)

1000V DC

Temperature & Coefficients

NOCT (nominal operating cell temperature)

45 Degrees C + - 2 Degrees C

Current Temperature Coefficient

 % / k

0.06 + - 0.01

Voltage Temperature Coefficient

 Mv / k

- (155+ - 10)

Power Temperature Coefficient

 % / k

-(0.5+- 0.05)

Output

Type of output Terminal

Junction Box

Cable

LAPP (4.0mm2)

Symmetrical Length

900mm

Connection

TYPE  1V

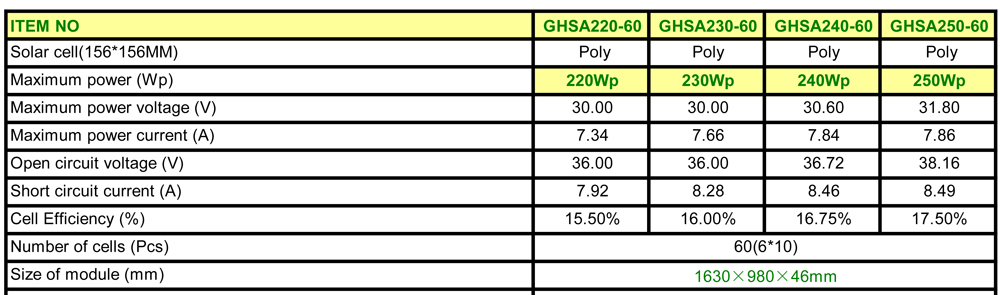

-GHSA220-250/60P Polycrystalline Silicon Solar Panel

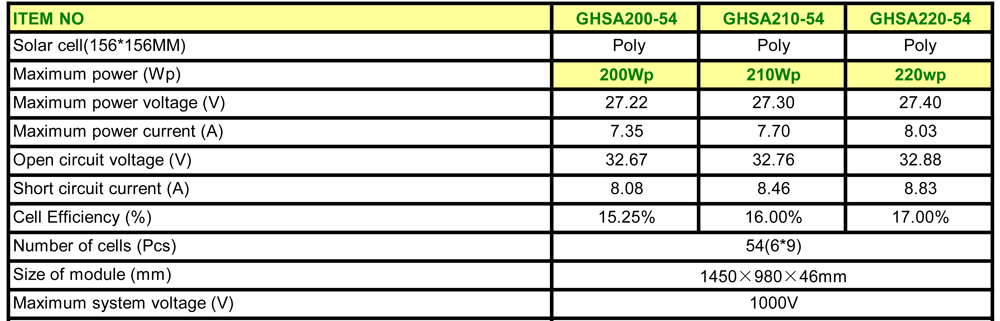

-GHSA200-220/54P Polycrystalline Silicon Solar Panel
