300W-320W Solar Panels for residential using,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Why Solar Energy Is One of The World’s Hottest Industries?
1. Solar offers better return
One of the famous investigating study found that installation in solar pane systems beats investment in a stock market investment fund.The study which was funded by the Department of Energy, also found that energy generated from solar panels is cheaper than buying energy from local utilities in 42 of 50 cities in America. Although they require considerable upfront capital as compared to conventional energy installations, solar panels have a payback system that enables consumers to rid themselves of energy utilities completely in the course of time.From an economic and profitability standpoint, solar offers better returns than conventional electric companies.
2. The cost of solar energy has declined
From a consumer standpoint, the main hindrance to greater solar adoption is related to costs. Conventional electric companiesare vertically integrated. This means that they own elements of the electricity generation process and, consequently, pass on those costs to consumers. In some cases,they also pass on litigation costs to consumers. As a result, electric bills have trended upward.The reductions have been made possible by declines in cost of manufacturing hardware of solar PV system. With development of new technology and greater customer traction, the price of making solar panels is expected to go down further in the World.
3. Solar is good for the economy
Growth of the solar industry has been good for the World's economy. According to a report from Solar Foundation, the solar industry added workers almost 20 times faster than the overall World's economy.

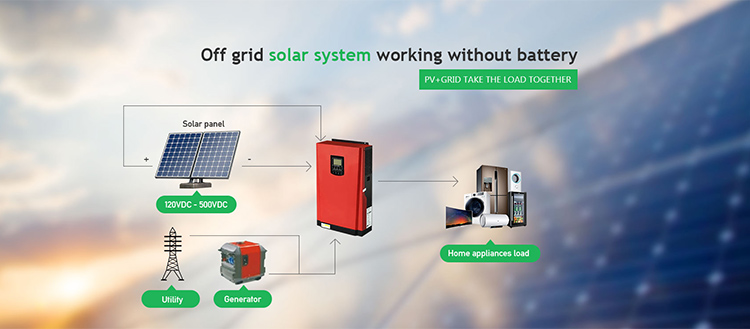

System Three: Home Smart Solar Grid-off System Without Battery Storage System - PV + Grid To Take The Loads Together
The detailed technical parameters:

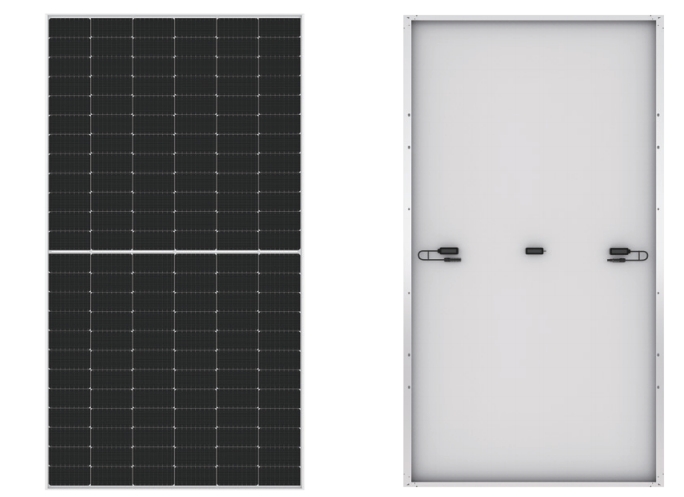

-GHSA320-72P Polycrystalline Silicon Solar Panel
Specification
Model Characteristics
Module
GHSA300-72P
Open circuit voltage (V)
40.16
Maximum power voltage (V)
33.8
Short circuit current (A)
9.6
Maximum power current (A)
8.33
Maximum power (Wp)
300Wp
Cell
Polycrystalline Silicon Solar Cells
156mm x 156mm
Number of cells (Pcs)
60(6*10)
Size of module (mm)
1950*992*40（mm）
Weight per piece (kg)
45
Limits
Operation Temperature
`-40C------+85 degree C
Maximum system voltage (V)
1000V DC
Temperature & Coefficients
NOCT (nominal operating cell temperature)
45 Degrees C + - 2 Degrees C
Current Temperature Coefficient
% / k
0.06 + - 0.01
Voltage Temperature Coefficient
Mv / k
- (155+ - 10)
Power Temperature Coefficient
% / k
-(0.5+- 0.05)
Output
Type of output Terminal
Junction Box
Cable
LAPP (4.0mm2)
Symmetrical Length
900mm
Connection
TYPE 1V
Specification
Model Characteristics
Module
GHSA320-72P
Open circuit voltage (V)
45.0
Maximum power voltage (V)
36.0
Short circuit current (A)
9.19
Maximum power current (A)
8.89
Maximum power (Wp)
320Wp
Cell
Polycrystalline Silicon Solar Cells
156mm x 156mm
Number of cells (Pcs)
72(6*12)
Size of module (mm)
1940*980*40（mm）
Weight per piece (kg)
22
Limits
Operation Temperature
`-40C------+85 degree C
Maximum system voltage (V)
1000V DC
Temperature & Coefficients
NOCT (nominal operating cell temperature)
45 Degrees C + - 2 Degrees C
Current Temperature Coefficient
% / k
0.06 + - 0.01
Voltage Temperature Coefficient
Mv / k
- (155+ - 10)
Power Temperature Coefficient
% / k
-(0.5+- 0.05)
Output
Type of output Terminal
Junction Box
Cable
LAPP (4.0mm2)
Symmetrical Length
900mm
Connection
TYPE 1V
Module Characteristics:
Note: the specifications are obtained under the Standard Test Conditions (STC):1000W/ m? solar irradiance, 1.5 Air Mass, and cell temperature of 25Degrees C
