Vertical axis wind turbine 5kW SW-VAWT-5KW wind turbine,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers

Author:senwei   Date:2024-04-24

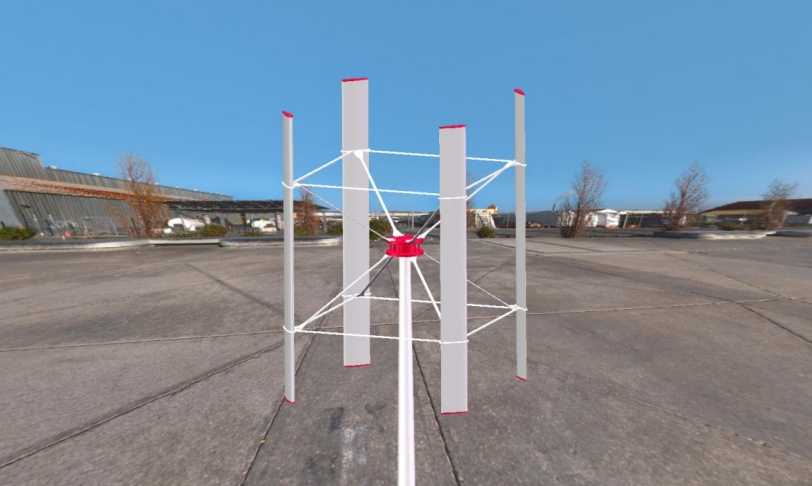

Vertical axis H-type SW-VAWT-5KW wind turbine  --| Home | wind solar hybrid system | Off grid | On grid





Advantages of Vertical Axis Wind Turbines

ü Safe and quiet, low speed and low noise

ü Not affected by wind direction

ü Safe for birds

ü Maintenance-free, long service life

ü Lower tower height requirements

ü Lower foundation requirements




Superior to other vertical axis wind turbines

? Both lift torque and drag torque can be obtained

? Low rated wind speed of 11m/s results in higher efficiency of wind power generation,

? Wide effective wind speed range and increased power generation

? Emergency manual braking;

? Automatic electromagnetic brake;

? Stall control;

release extra load on dump-load box to speed down the wind turbine


Specification


Model

SW- VAWT-5KW

Rotor diameter

3.5m

Blades quantity:

5pcs

Blade Length:

3.65m

Blades material:

Aluminium alloy * 6pcs

Rated output:

5.0KW

Maximum output:

6.0KW

working voltage:

DC48/96/120V/240/360/500 V, AC220/380V

working wind speed:

3-20m/s

Initial wind speed:

2.5m/s

Nominal wind speed:

11.0m/s

Storm-stand:

up to 45m/s

Rated rotate speed:

120r/min

Wind turbine type:

Three-phase,  PMG Alternator 220V/380V

Working temperature:

from -40 to +60 C

Blade Speed Control

Electromagnetic stall protection

Stop methods:

Automatic electromagnetic brake, handbrake

Speed regulation methods:

Stall protection

Gearbox:

None, Direct Drive

Accumulators full charge time:

about 8 hours

Over-speed protection

Automatic electromagnetic brake




SW-VAWT-5KW Power Curve




Estimated Annual Energy Production



SW-VAWT-5KW Vertical axis H-type

 Average wind speed

Average Energy Turbulence

       m/s

     mph

    Ideal

      15%

     20%

      25%

       4.5

     10.1

    8,212

     6,980

     6,570

     6,160

       5.0

     11.2

   10,220

     8,687

     8,176

     7,665

       5.5

     12.3

   12,410

    10,549

     9,928

     9,308

       6.0

     13.4

   14,965

    12,720

    11,972

    11,224

Estimated Annual Energy Production (kWh)




Inquiry to U.S

to talk more details about SW-VAWT-5kw vertical axis wind turbine online, please to use

Whatsapp: +86-18806776641 / Skype: doris421pu;

email: sales@windpowercn.com
