Vertical axis wind turbine 1kW SW-VAWT-1KW wind turbine,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers

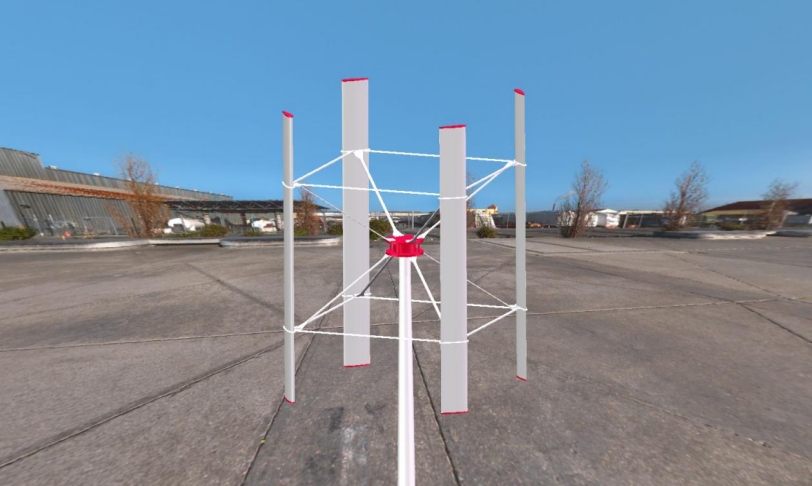

Vertical axis H-type SW-VAWT-1KW wind turbine
--| Home | wind solar hybrid system | Off grid | On grid
Advantages of Vertical Axis Wind Turbines
? Safe and quiet, low speed and low noise
? Not affected by wind direction
? Safe for birds
? Maintenance-free, long service life
? Lower tower height requirements
? Lower foundation requirements
Superior to other vertical axis wind turbines
? Both lift torque and drag torque can be obtained
? Low rated wind speed of 11m/s results in higher efficiency of wind power generation,
? Wide effective wind speed range and increased power generation
? Emergency manual braking;
? Automatic electromagnetic brake;
? Stall control;
? release extra load on dump-load box to speed down the wind turbine for braking.
Specification
|
Model |
SW- VAWT-1KW |
|
Rotor diameter |
1.8m |
|
Blades quantity: |
5pcs |
|
Blade Length: |
1.8m |
|
Blades material: |
Aluminium alloy * 3pcs |
|
Rated output: |
1.0KW |
|
Maximum output: |
1.1KW |
|
working voltage: |
DC24/48/96/120V/240/360V, AC220/380V |
|
working wind speed: |
3-20m/s |
|
Initial wind speed: |
2.5m/s |
|
Nominal wind speed: |
12.0m/s |
|
Storm-stand: |
up to 45m/s |
|
Rated rotate speed: |
180r/min |
|
Wind turbine type: |
Three-phase, PMG Alternator 220V/380V |
|
Working temperature: |
from -40 to +60 C |
|
Blade Speed Control |
Electromagnetic stall protection |
|
Stop methods: |
Automatic electromagnetic brake, handbrake |
|
Speed regulation methods: |
Stall protection |
|
Gearbox: |
None, Direct Drive |
|
Accumulators full charge time: |
about 8 hours |
|
Over-speed protection |
Automatic electromagnetic brake |
SW-VAWT-1KW Power Curve
Estimated Annual Energy Production
|
SW-VAWT-1KW Vertical axis H-type
|
Average wind speed |
Average Energy Turbulence |
||||
|
m/s |
mph |
Ideal |
15% |
20% |
25% |
|
|
4.5 |
10.1 |
1,640 |
1,396 |
1,314 |
1,233 |
|
|
5.0 |
11.2 |
1,916 |
1,640 |
1,533 |
1,437 |
|
|
5.5 |
12.3 |
2,190 |
1,862 |
1,752 |
1,643 |
|
|
6.0 |
13.4 |
2,920 |
2,482 |
2,336 |
2,190 |
|
|
Estimated Annual Energy Production (kWh) |
||||||
