Vertical axis H-type SW-VAWT-2KW wind turbine --| Home | wind solar hybrid system | Off grid | On grid
Advantages of Vertical Axis Wind Turbines
ü Safe and quiet, low speed and low noise
ü Not affected by wind direction
ü Safe for birds
ü Maintenance-free, long service life
ü Lower tower height requirements
ü Lower foundation requirements
Superior to other vertical axis wind turbines
? Both lift torque and drag torque can be obtained
? Low rated wind speed of 11m/s results in higher efficiency of wind power generation,
? Wide effective wind speed range and increased power generation
? Emergency manual braking;
? Automatic electromagnetic brake;
? Stall control;
? release extra load on dump-load box to speed down the wind turbine
Specification
Model
SW - VAWT-2KW
Rotor diameter
2.6m
Blades quantity:
4pcs
Blade Length:
2.6m
Blades material:
Aluminium alloy * 4pcs
Rated output:
2.0KW
Maximum output:
2.4KW
working voltage:
DC24/48v/120/240/360V, AC220/380V
working wind speed:
3-20m/s
Initial wind speed:
2.5m/s
Nominal wind speed:
11.5m/s
Storm-stand:
up to 45m/s
Rated rotate speed:
160r/min
Wind turbine type:
Three-phase, PMG Alternator 220V
Working temperature:
from -40 to +60 C
Blade Speed Control
Electromagnetic stall protection
Stop methods:
Automatic electromagnetic brake, handbrake
Speed regulation methods:
Stall protection
Gearbox:
None, Direct Drive
Accumulators full charge time:
about 8 hours
Over-speed protection
Automatic electromagnetic brake
SW-VAWT-2KW Power Curve
Estimated Annual Energy Production
|

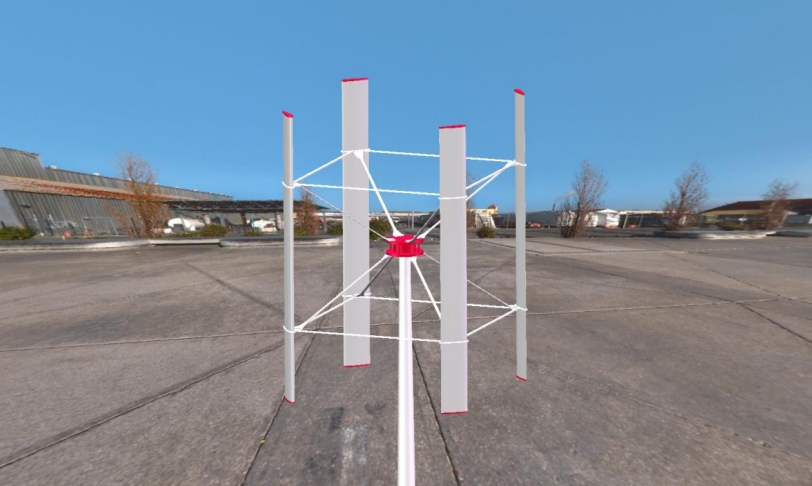

SW-VAWT-2KW Vertical axis H-type
|
Average wind speed |
Average Energy Turbulence |
||||
|
m/s |
mph |
Ideal |
15% |
20% |
25% |
|
|
4.5 |
10.1 |
3,285 |
2,793 |
2,628 |
2,465 |
|
|
5.0 |
11.2 |
3,832 |
3,258 |
3,065 |
2,874 |
|
|
5.5 |
12.3 |
4,380 |
3,723 |
3,504 |
3,285 |
|
|
6.0 |
13.4 |
5,840 |
4,964 |
4,672 |
4,380 |
|
|
Estimated Annual Energy Production (kWh) |
||||||
