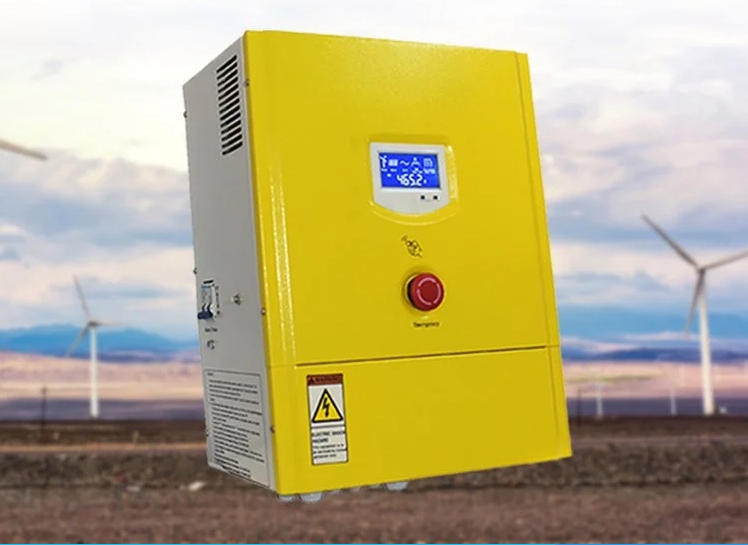

On grid wind turbine controller and On grid wind solar hybrid controller
FKJ-GT (Grid-tie) model Product Characteristics
◆ The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical
requirements.
◆ Big LCD display.The images tell working state visually.Various data show: real-time wind turbine voltage、current、solar panel voltage、current、DC output voltage、current,total power generation(The main board is with button battery,in case of power failure, history data can be saved for 30 days)
◆ Two sets of control systems：PWM constant voltage system and three-phase dump load system.
◆ PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load willautomatically start immediately. After 10-20 minutes, the three-phase dump load will stop and the wind turbine will re-start to resume power supply
to ensure the safe running of the overall wind turbine generation system.
◆ When the strong or super-strong wind conditions, the controller can conduct constant voltage output to ensure the inverter safety running.
◆ When the condition of disconnected grid-connected inverter, the controller can conduct constant voltage output and wait for inverter resumption.
◆ When the grid is cut off, the three-phase dump load of the controller will automatically start to work and the inverter will stop output to grid. When
the grid resuming, the controller stops three-phase dump load and the inverter will resume power supply.
◆ The inside of the controller is equipped with surge protector. Contain the over voltage into the wind turbine under the bearable voltage of the
equipment or system. On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
◆ The controller is equipped with emergency stop switch; in case of emergency, press down the emergency stop button in the front panel to cut off all
power supply of the controller and the wind turbine will immediately brake（three-phase dump load）.
◆ The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will brake (three-phase dump load).
※ Adopt Modbus Communication protocol. Convenient to carry out the secondary development.
※ Adjusting the technical specification via RS485 is available.Convenient to adjust the different wind turbines for professional customers.
※ Support WIFI and GPRS.Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history
working sate.Both Android and OS are compatible in Mobile.
※ Can increase the solar panel control system according to customer requirements.
※ For the different wind turbine, the controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,
hydraulic brake, electromagnetism brake and other brake functions.
并网风力发电机控制器/并网风光互补控制器技术参数1.5KW-3KW
Technical Parameters of the On Grid Wind Turbine (wind solar hybrid) Controller 1.5KW-3KW
|
型号Type
|
FKJ-GT1.5KW
|
FKJ-GT2KW
|
FKJ-GT3KW
|
|
风力发电机额定功率Wind turbine rated power
|
1.5KW
|
2KW
|
3KW
|
|
风力发电机最大功率Wind turbine Max. power
|
3KW
|
4KW
|
6KW
|
|
风机额定电压Wind turbine rated voltage
|
AC220V
|
AC220V
|
AC220V
|
|
*太阳能板功率（可选）Solar panels power (optional)
|
300W
|
600W
|
900W
|
|
功能Function
|
整流、控制、直流输出 Rectifier,control,DC output
|
|
自动保护功能Automatic protection function
|
过压保护、网电断电保护、稳压输出、避雷器Over voltage protection, network electric cut off protection, regulated supply output, arrester
|
|
手动功能Manual function
|
风机手动刹车、系统重启、应急开关 Manual brake, reset, emergency switch
|
|
显示Display mode
|
液晶显示LCD
|
|
显示内容Display content
|
风机电压、电流、功率，太阳能电压、电流、功率，直流输出电压，直流输出电流，直流输出功率，累计功率
Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
|
|
PWM恒压电压
PWM constant voltage
|
≥320dc
|
≥320dc
|
≥320dc
|
|
风力发电机三相卸荷动作电压
Wind turbine 3-phase dump load voltage
|
350±5Vdc
|
350±5Vdc
|
350±5Vdc
|
|
风力发电机三相卸荷延时
Wind turbine 3-phase dump load time-lapse
|
12-20 min
|
12-20 min
|
12-20 min
|
|
太阳能保险 Solar panels fuse
|
2A
|
3A
|
4A
|
|
PWM卸荷保险PWM dump load fuse
|
10A
|
10A
|
16A
|
|
直流输出保险Fuse of DC output
|
16A
|
16A
|
20A
|
|
工作温度Work environment temperature
|
-30-60°C
|
|
相对湿度Relative humidity
|
＜90% 不结露 ＜90% No condensation
|
|
噪音 (1m) Noise (1m)
|
＜40dB
|
|
防护等级Degree of protection
|
IP20 (室内Indoor) IP65 (户外Outdoors)
|
|
制冷方式Cooling method
|
强制风冷Forced air cooling
|
|
*远程通讯（可选）
Communication interface (optional)
|
RS485/USB/GPRS/WIFI/Ethernet
|
|
*温度补偿（可选）
Temperature compensation (optional)
|
-4mv/°C/2V,-35°C~+80°C,精度Accuracy:±1°C
|
|
控制器尺寸Size of the controller (mm)
|
510*360*240
|
510*360*240
|
510*360*240
|
|
控制器重量Weight of the controller
|
15Kg
|
17Kg
|
17Kg
|
|
卸荷器尺寸Size of the dump load (mm)
|
410*360*120
|
410*360*120
|
400*410*250
|
|
卸荷器重量Weight of the dump load
|
7Kg
|
9Kg
|
13Kg
|
*Above parameter only for reference
1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
