Author：senwei Date：2024-04-13

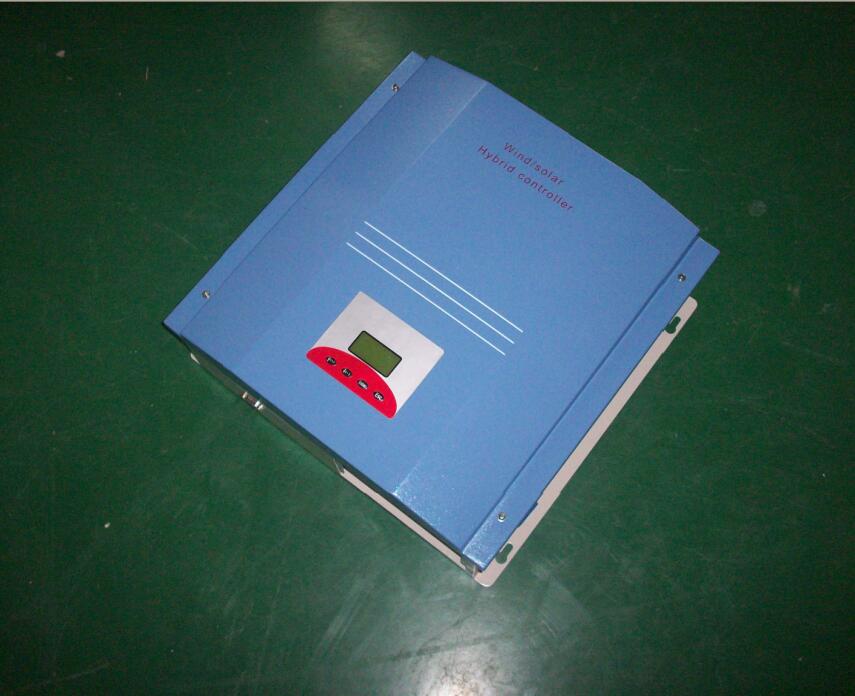

The wind/solar hybrid controller is used to control the wind power charging battery under constant voltage. In addition, it includes solar charging control, which makes it good for wind/solar hybrid application.

Option function:
a. To add PC communication function:
b. To add PC communication and wind turbine low voltage charge functions:
c. To add remote controlling DTU modules:
d RS232 interface connect to USB convertor:
e. RS485 interface connect to USB convertor:

Technical Parameters:

WWS300W/WWS600W wind solar charger controller

Model	WWS02A-12	WWS03A-12	WWS05A-24	WWS06A-24
Rated Battery Voltage	12V		24V
Rated Wind Turbine Maximum Power	200W	300W	500W	600W
Rated Solar Power	100W	150W	250W	300W
Rated Wind Turbine Maximum Input Current	40A
Wind Turbine Maximum Input Power	500W		1000W
Unload Voltage（factory default）	14V		28V
Unload Current（factory default）	18A
PV Maximum Charge Current	10A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.

WWS1000W wind solar charger controller

Model	WWS10A-24	WWS10A-48
Rated Wind Turbine Maximum Power	1000W
Rated Solar Power	300W
Rated Battery Voltage	24V	48V
Rated Wind Turbine Maximum Input Current	60A	30A
Wind Turbine Maximum Input Power	1500W
Unload Voltage（factory default）	28V	56V
Unload Current（factory default）	36A	18A
PV Maximum Charge Current	10A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation） -
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： ① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. ② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. ③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.
FOB Shanghai Price

WWS2000 wind solar charger controller

Model	WWS20A-48		WWS20A-96	WWS20A-120	WWS20A-220	WWS20A-240
Rated Wind Turbine Maximum Power	2000W
Rated Solar Power	600W
Rated Battery Voltage	48V		96V	120V	220V	240V
Rated Wind Turbine Maximum Input Current	60A		30A	25A	10A	10A
Wind Turbine Maximum Input Power	3000W
Unload Voltage（factory default）	56V		112 V	140V	252 V	280 V
Unload Current（factory default）	36A		18A	18A	18A	18A
PV Maximum Charge Current	10A [at max solar power equate to wind power in rating]
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
	Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function：
① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save.
② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software.
③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.

WWS3000 wind solar charger controller

Model	WWS30A-48	WWS30A-96	WWS30A-120	WWS30A-220	WWS30A-240
Rated Wind Turbine Maximum Power	3000W
Rated Solar Power	900W
Rated Battery Voltage	48V	96V	120V	220V	240V
Rated Wind Turbine Maximum Input Current	100 A	50 A	40 A	20 A	20 A
Wind Turbine Maximum Input Power	5000W
Unload Voltage（factory default）	56V	112 V	140V	252 V	280 V
Unload Current（factory default）	36A	18A	18A	18A	18A
PV Maximum Charge Current	20A	10A	10A	10A	10A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： ① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. ② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. ③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.
FOB Shanghai Price

WWS5000W wind solar hybrid controller

Model	WWS50A-48	WWS50A-96	WWS50A-120	WWS50A-220	WWS50A-240
Rated Wind Turbine Maximum Power	5000W
Rated Solar Power	1500W
Rated Battery Voltage	48V	96V	120V	220V	240V
Rated Wind Turbine Maximum Input Current	200A	100A	80A	40A	40A
Wind Turbine Maximum Input Power	10000W
Unload Voltage（factory default）	56V	112 V	140V	252 V	280 V
Unload Current（factory default）	90A	72A	36A	18A	18A
PV Maximum Charge Current	30A	20A	10A	10A	10A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： ① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. ② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. ③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.
FOB Shanghai Price

WWS10kw wind solar charger controller

Model	WWS100A-120	WWS100A-220	WWS100A-240	WWS100A-360
Rated Wind Turbine Maximum Power	10KW
Rated Solar Power	3kW
Rated Battery Voltage	120V	220V	240V	360V
Rated Wind Turbine Maximum Input Current	130A	70A	60A	40A
Wind Turbine Maximum Input Power	15000W
Unload Voltage（factory default）	140V	252 V	280 V	420 V
Unload Current（factory default）	72A	36A	36A	18A
PV Maximum Charge Current	20A	10A	10A	10A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： ① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. ② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. ③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.
FOB Shanghai Price

WWS20KW wind solar charger controller

Model	WWS200A-220	WWS200A-240	WWS200A-360
Rated Wind Turbine Maximum Power	20KW
Rated Solar Power	6kW
Rated Battery Voltage	220V	240V	360V
Rated Wind Turbine Maximum Input Current	150A	130A	90A
Wind Turbine Maximum Input Power	30KW
Unload Voltage（factory default）	252 V	280 V	420 V
Unload Current（factory default）	72A	72A	36A
PV Maximum Charge Current	20A
Temperature Compensation	-5mv/℃/2V（Over discharge protection，over-discharge recovery voltage ，unload voltage compensation）
Unload Mode	PWM
Display	LCD
Display Parameters	Battery Voltage、Wind Turbine Voltage、PV Voltage、Wind Turbine Current、PV Current、Wind Turbine Power、PV Power、Under-voltage、short-circuit、Night.Etc
Range of working temperature &Humidity	-20~+55℃/35~85%RH（Without Condensation）
Protection Mode	Solar cells reverse charging、Solar cells anti-reverse、 battery over charge、battery over-discharge、battery anti-reverse、over load、load short-circuit、lighting、wind turbine current limitting、wind turbine automatic brake and manual brake.
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer’s request
Optional function： ① Communication function：Can chose RS232 communication interface，Provide remote monitoring software along with the controller。After monitoring software installation，users can check and set parameters through te software。At the same times，users can put the parameters which record in the system operation process into Excel to save. ② Low voltage charge function：To improve the traditional controller’s insufficient,which is only when the fan or solar panels’s voltage higher than the battery’s voltge can be charging.Now the system can be charging from a low voltage.If the users chose the communication function ,they can set the charge voltage through the software. ③ Remote control system：Users can chose GPRS wireless communicationsfunction, serial communication server system.Users can control some systems through one computer at the same time.
FOB Shanghai Price

If need to get more info of s olar/wind power system for your home, please contact us:
