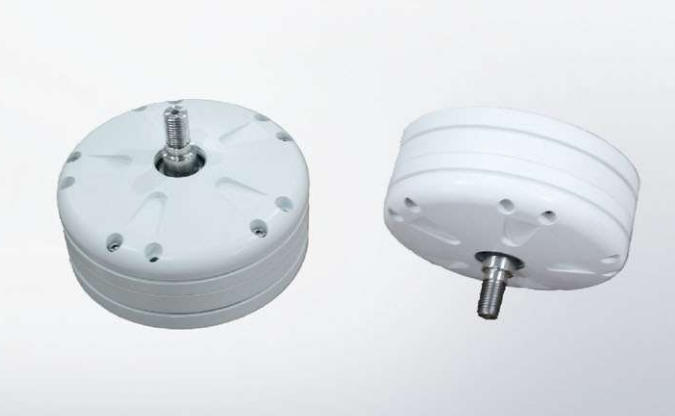

Horizontal Axis Mounting PMG 1KW-2KW
Horizontal Axis Mounting PMG 1KW-1.5KW-2KW
Horizontal axis permanent magnet generator 1KW-1.5KW-2KW is a device that converts mechanical energy into electrical energy, with advantages such as small size, high efficiency, and no need for excitation system. It is commonly used in wind power generation and other scenarios.
Core Features:
l Structural principle: Using permanent magnets instead of traditional excitation windings, the coil is cut by a rotating magnetic field to generate current, and the magnetic field can be maintained without external power supply.
?
l Speed and power: Typical products include a 300W three-phase AC permanent magnet generator with a rated speed of 158RPM (revolutions per minute) and a starting wind speed of 2.5m/s, suitable for low wind speed environments.
?
l Materials and Design: The shell is mostly made of high-strength aluminum alloy, and the blade material is reinforced fiberglass. It supports 3-6 blade configurations and has the function of automatically adjusting the windward angle. ?
Advantages and limitations
Advantage:
l Small in size and lightweight, suitable for small devices such as household or wind power systems. ?
l Carbon brushes, slip rings, and other vulnerable components result in low maintenance costs. ?
l Direct drive design reduces transmission losses and has high efficiency. ?
Limitations:
l Difficulty in regulating output voltage, and high-frequency iron loss may lead to temperature rise. ?
l Extreme temperatures or mechanical vibrations should be avoided to prevent demagnetization of permanent magnets. ?
Application scenarios
Mainly used in wind power generation, electric vehicles, medical equipment and other fields, especially suitable for occasions that require miniaturization and high reliability
Electrical Specification
Rated output power (W):
1K
1.5K
2
Rated rotation speed (RPM):
450
550
350
Rectified DC current rate output (A):
6
30
10
Required Torque at rated power (NM):
31.5
35
54.5
Phase Resistance (Ohms):
6.0
0.3
6.0
Output Wire Square Section(mm):
4
4
4
Output Wire length (mm):
600
100
600
Insultation :
H class
Generator configuration :
3 Phase star connected AC output
Design lifetime :
>20 years
Mechanism Specification
Mounting Type :
Horizontal
Weight (kg) :
16.7
17.2
36.7
Starting Torque (NM) :
<0.5
<0.7
<0.5
Rotor Inertia (kg.m2) :
0.010
0.111
0.010
Bearing Type ：
High standard NSK 6207DDUC3
(Front) NSK 6207VVC3 (Rear)
Material Specification
Shaft Material:
Nickle plated 40 Cr Steel with quenching and tempering treatment
Shaft Bearing:
High standard SKF or NSK bearing
Outer Frame Material:
Steel with anti-corrosion treatmen
Fasteners (nuts and bolts):
High standard Stainless Stee
Windings Temperature Rating:
180 degrees Celsius
Magnet Material:
NdFeB (Neodymium Iron Boron)
Magnets Temperature Rating
150 degrees Celsius
Lamination Stack
High specification cold-rolled Steel
