SWF-30KW Wind Turbine New-Electric Controlled Wind Turbine (UNIQUE DESIGN With Tailless)
In order to adapt to the new small wind turbine market, senwei has developed a new electronically controlled tailless 25kw-30kw wind turbine. Compared with the variable pitch wind turbine, the electronically controlled tailless wind turbine has the advantages of low cost, light weight, convenient installation, high automation and intelligence, and can realize remote monitoring. All programs are controlled by computer and completed by intelligent PLC program. This type of wind turbine is suitable for application in It is especially suitable for water pump irrigation, agricultural water extraction, aquaculture, remote military camp and isolated island areas.
Main features:
1. Low starting wind speed, beautiful appearance and low vibration; 2. Humanized flange installation design is used to facilitate installation and maintenance; 3. High quality alloy steel body, using high-quality glass fiber reinforced plastic blades, corrosion resistance enhanced, both beautiful and durable, color can be made according to customer requirements; 4. The generator adopts patented permanent magnet rotor alternator with special rotor design, which can effectively reduce the resistance torque of the generator, which is only 1 / 3 of that of ordinary motor. Meanwhile, it makes the wind turbine and generator have better matching characteristics and the operation reliability of the unit. 5.The maximum power tracking intelligent .

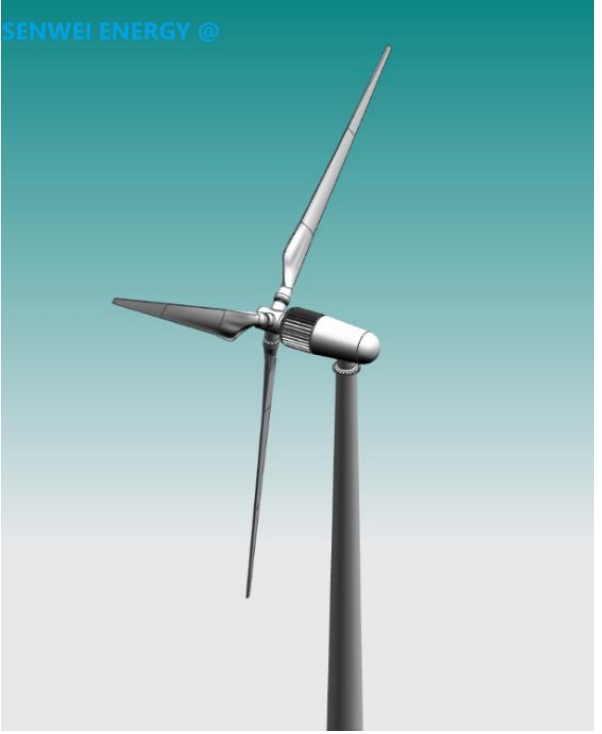

Structure Design Drawing:

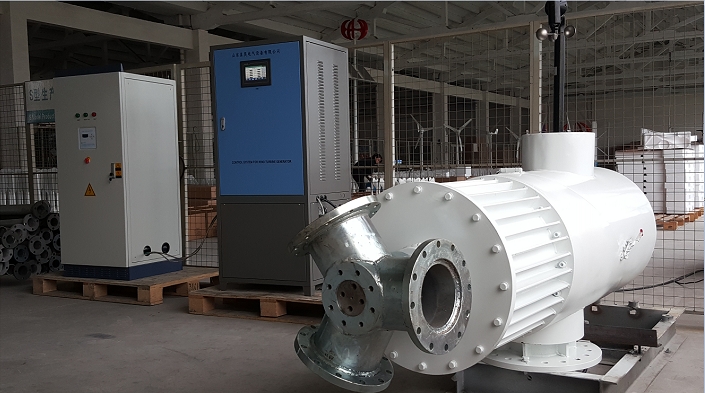

Wind Turbine Nacelle Real Photos:
Main Technical Parameter
|
Wind rotor diameter (m) |
12.0 |
|
blade Material/ quantity |
Reinforced fiber glass*3 |
|
Rated power/max power (kw) |
30/40 |
|
Rated wind speed (m/s) |
11.5 |
|
Start-up wind speed (m/s) |
3 |
|
Working wind speed range (m/s) |
3-25 |
|
Security wind speed (m/s) |
≤45 |
|
Rated rotate speed (r/min) |
180 |
|
Working voltage (V) |
DC0-800V |
|
Generator type |
Permanent magnet 3-phase AC generator |
|
Output control method |
Frequency instruction ( optional ) |
|
Speed regulation method |
Fixed Pitch, Yaw, Magnetic control |
|
Stop method |
Auto-Yaw, hydraulic brake,Manual |
|
Wind turbine main body weight |
1600 kg |
|
Resist atmosphere corrosion age limit |
>20years |

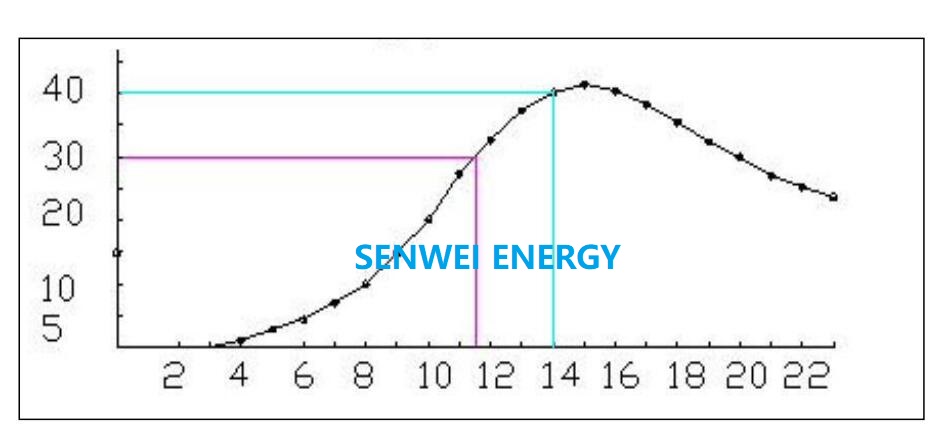

Power Curve
