On grid wind turbine controller and On grid wind solar hybrid controller 1KW-200KW
FKJ-GT (Grid-tie) model Product Characteristics
◆ The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.
◆ Big LCD display.The images tell working state visually.Various data show: real-time wind turbine voltage、current、solar panel voltage、current、DC output voltage、current,total power generation(The main board is with button battery,in case of power failure, history data can be saved for 30 days)
◆ Two sets of control systems：PWM constant voltage system and three-phase dump load system.
◆ PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load willautomatically start immediately. After 10-20 minutes, the three-phase dump load will stop and the wind turbine will re-start to resume power supply
to ensure the safe running of the overall wind turbine generation system.
◆ When the strong or super-strong wind conditions, the controller can conduct constant voltage output to ensure the inverter safety running.
◆ When the condition of disconnected grid-connected inverter, the controller can conduct constant voltage output and wait for inverter resumption.
◆ When the grid is cut off, the three-phase dump load of the controller will automatically start to work and the inverter will stop output to grid. When
the grid resuming, the controller stops three-phase dump load and the inverter will resume power supply.
◆ The inside of the controller is equipped with surge protector. Contain the over voltage into the wind turbine under the bearable voltage of the
equipment or system. On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
◆ The controller is equipped with emergency stop switch; in case of emergency, press down the emergency stop button in the front panel to cut off all
power supply of the controller and the wind turbine will immediately brake（three-phase dump load）.
◆ The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will brake (three-phase dump load).
※ Adopt Modbus Communication protocol. Convenient to carry out the secondary development.
※ Adjusting the technical specification via RS485 is available.Convenient to adjust the different wind turbines for professional customers.
※ Support WIFI and GPRS.Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history
working sate.Both Android and OS are compatible in Mobile.
※ Can increase the solar panel control system according to customer requirements.
※ For the different wind turbine, the controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,
hydraulic brake, electromagnetism brake and other brake functions.
*On Grid Wind Turbine (wind solar hybrid) Controller 5KW-10KW*
Technical Parameters of the On Grid Wind Turbine (wind solar hybrid) Controller 5KW-10KW
|
Type
|
FKJ-GT5KW
|
FKJ-GT5KW
|
FKJ-GT10KW
|
|
Wind turbine rated power
|
5KW
|
5KW
|
10KW
|
|
Wind turbine Max. power
|
10KW
|
10KW
|
20KW
|
|
Wind turbine rated voltage
|
AC220V
|
AC380-400V
|
AC380-400V
|
|
Solar panels power(optional)
|
1.5KW
|
1.5KW
|
3KW
|
|
Function
|
Rectifier,control,DC output
|
|
Automatic protection function
|
Over voltage protection, network electric cut off protection, regulated supply output, arrester
|
|
Manual function
|
Manual brake, reset, emergency switch
|
|
Display mode
|
LCD
|
|
Display content
|
Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
|
|
PWM constant voltage
|
≥320dc
|
≥520dc
|
≥520dc
|
|
Wind turbine 3-phase dump load voltage
|
350±5Vdc
|
540±5Vdc
|
540±5Vdc
|
|
Wind turbine 3-phase dump load time-lapse
|
12-20 min
|
12-20 min
|
12-20 min
|
|
Solar panels fuse
|
5A
|
5A
|
8A
|
|
PWM dump load fuse
|
25A
|
16A
|
32A
|
|
Fuse of DC output
|
32A
|
20A
|
40A
|
|
Work environment temperature
|
-30-60°C
|
|
Relative humidity
|
＜90% No condensation
|
|
Noise (1m)
|
＜40dB
|
|
Degree of protection
|
IP20(室内Indoor) IP65 (户外Outdoors)
|
|
Cooling method
|
Forced air cooling
|
|
Communication interface (optional)
|
RS485/USB/GPRS/WIFI/Ethernet
|
|
Temperature compensation(optional)
|
-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C
|
|
Size of the controller (mm)
|
510*360*240
|
510*360*240
|
580*400*240
|
|
Weight of the controller
|
18Kg
|
18Kg
|
23Kg
|
|
Size of the dump load (mm)
|
600*450*380
|
600*450*380
|
690*450*530
|
|
Weight of the dump load
|
28Kg
|
28Kg
|
35Kg
|
*Above parameter only for reference
1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
*On Grid Wind Turbine Controller 15KW-30KW*
*Technical Parameters of the On Grid Wind Turbine Controller 15KW-30KW
|
Type
|
FKJ-GT15KW
|
FKJ-GT20KW
|
FKJ-GT30KW
|
|
Wind turbine rated power
|
15KW
|
20KW
|
30KW
|
|
Wind turbine Max. power
|
30KW
|
40KW
|
60KW
|
|
Wind turbine rated voltage
|
AC380V-400V
|
AC380V-400V
|
AC380V-400V
|
|
Function
|
Rectifier,control,DC output
|
|
Automatic protection function
|
Over voltage protection, network electric cut off protection, regulated supply output, arrester
|
|
Manual function
|
Manual brake, reset, emergency switch
|
|
Display mode
|
LCD
|
|
Display content
|
Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
|
|
PWM constant voltage
|
≥520dc
|
≥520dc
|
≥520dc
|
|
wind turbine 3-phase dump load voltage1
|
540±5Vdc
|
540±5Vdc
|
540±5Vdc
|
|
wind turbine 3-phase dump load voltage2
|
------------
|
540±5Vdc
|
550±5Vdc
|
|
Time-lapse of the wind turbine 3-phase dump load2
|
12-20 min
|
12-20 min
|
12-20 min
|
|
PWM dump load fuse
|
50A
|
63A
|
80A
|
|
Fuse of DC output
|
63A
|
80A
|
100A
|
|
Work environment temperature
|
-30-60°C
|
|
Relative humidity
|
＜90% No condensation
|
|
Noise (1m)
|
＜40dB
|
|
Degree of protection
|
IP20(室内Indoor) IP65 (户外Outdoors)
|
|
Cooling method
|
Forced air cooling
|
|
Communication interface (optional)
|
RS485/USB/GPRS/WIFI/Ethernet
|
|
Temperature compensation(optional)
|
-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C
|
|
Size of the controller (mm)
|
580*400*240
|
650*600*240
|
650*600*240
|
|
Weight of the controller
|
25Kg
|
36Kg
|
38Kg
|
|
Size of the dump load (mm)
|
690*450*530
|
720*500*1300
|
720*500*1300
|
|
Weight of the dump load
|
41Kg
|
70Kg
|
80Kg
|
*Above parameter only for reference
1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.

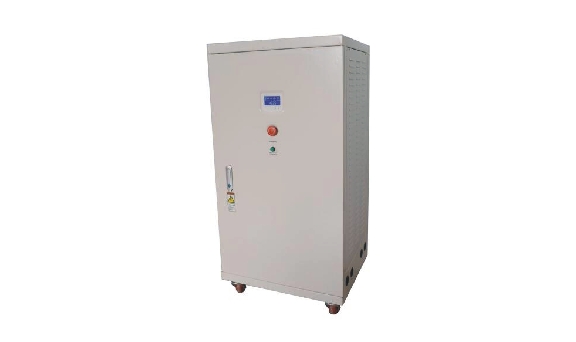

*On Grid Wind Turbine Controller 50KW-200KW*
*Technical Parameters of the On Grid Wind Turbine Controller 50KW-200KW
*Technical Parameters of the On Grid Wind Turbine Controller 50KW-200KW
|
Type
|
FKJ-GT50KW
|
FKJ-GT100KW
|
FKJ-GT200KW
|
|
Wind turbine rated power
|
50KW
|
100KW
|
200KW
|
|
Wind turbine Max. power
|
100KW
|
200KW
|
300KW
|
|
Wind turbine rated voltage
|
AC400V
|
AC400V
|
AC400V
|
|
Function
|
Rectifier,control,DC output
|
|
Automatic protection function
|
Over voltage protection, network electric cut off protection, regulated supply output, arrester
|
|
Manual function
|
Manual brake, reset, emergency switch
|
|
Display mode
|
LCD
|
|
Display content
|
Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
|
|
PWM constant voltage1
|
≥560Vdc
|
≥560Vdc
|
≥560Vdc
|
|
PWM constant voltage2
|
-----------
|
≥560Vdc
|
≥560Vdc
|
|
PWM constant voltage3
|
-----------
|
-----------
|
≥560Vdc
|
|
wind turbine 3-phase dump load voltage1
|
580±5Vdc
|
580±5Vdc
|
580±5Vdc
|
|
three-phase dump load 1 delay time
|
12-20 min
|
12-20 min
|
12-20 min
|
|
wind turbine 3-phase dump load voltage2
|
600±5Vdc
|
600±5Vdc
|
600±5Vdc
|
|
three-phase dump load 2 delay time
|
12-20 min
|
12-20 min
|
12-20 min
|
|
wind turbine 3-phase dump load voltage3
|
-----------
|
600±5Vdc
|
600±5Vdc
|
|
three-phase dump load 3 delay time
|
-----------
|
12-20 min
|
12-20 min
|
|
PWM dump load fuse
|
100A
|
63A*2
|
63A*3
|
|
Fuse of DC output
|
160A
|
250A
|
450A
|
|
Connecting wire of the PWM dump load
|
>20mm?
|
>15mm?
|
>15mm?
|
|
Connecting wire of the dump load
|
>12mm?
|
>16mm?
|
>20mm?
|
|
Work environment temperature
|
-30-60°C
|
|
Relative humidity
|
＜90% No condensation
|
|
Noise (1m)
|
＜40dB
|
|
Degree of protection
|
IP20（室内Indoor）
|
|
Cooling method
|
Forced air cooling
|
|
Communication interface
|
RS485/USB/GPRS/WIFI/Ethernet(optional)
|
|
Temperature compensation
|
-4mv/°C/2V,-35°C~+80°C,精度Accuracy:±1°C
|
|
Size of the controller (mm)
|
600*500*1200mm
|
600*500*1200mm
|
600*500*1200mm
|
|
Weight of the controller
|
94Kg
|
96Kg
|
96Kg
|
|
Size of the dump load (mm)
|
720*500*1300
|
720*500*1300(2pcs)
|
720*500*1300(2pcs)
|
|
Weight of the dump load
|
107Kg
|
107Kg*2
|
107Kg*2
|
*Above parameter only for reference. Could be custom made to user specifications.
