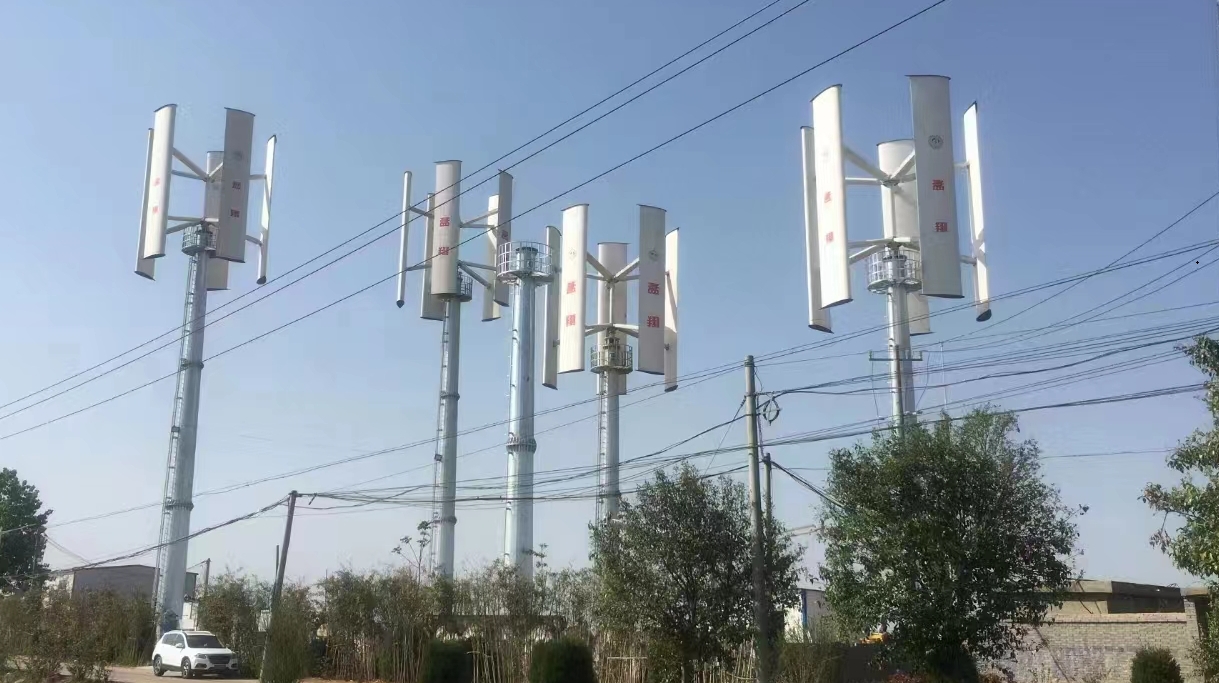

30kW Vertical Axis Wind Turbine, wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Main Parmaters
--30kw Vertical Axis Wind Turbine Generator--
DATA SHEET - VAWT-30KW
|
Power |
30,000W |
|
Type of generator |
Permanent-magnet 380v A.C. |
|
Rotor diameter: |
6.0m |
|
Blades Length: |
10.0m |
|
Blade Material: |
Aluminum alloy *5 |
|
Rated rotor speed |
90r/min |
|
Rated speed |
10.5m/s |
|
Rated Power |
30,000W |
|
Max Power |
37,500W |
|
Start up wind speed |
3.0(m/s) |
|
Work speed |
3-25(m/s) |
|
Security wind speed |
35(m/s) |
|
Height of Lattice tower |
15m |
|
Top quality except tower |
2260kg |
|
Output controller system |
Controller , Inverter |

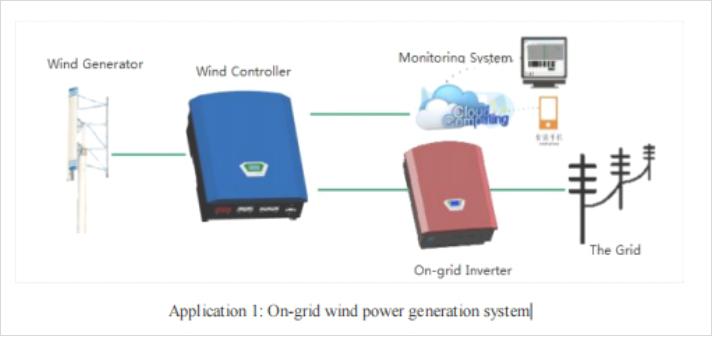

System Diagram 01
Solution 1: wind grid tie inverter with controller built-in same one unit

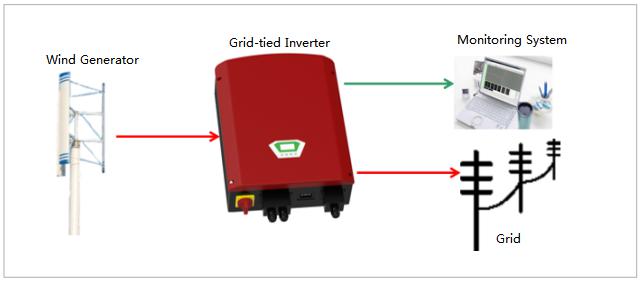

System Diagram 02
Solution 2: wind grid tie inverter with separated controller and dump-load
