Wind Grid tie inverter,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Main Parameter:

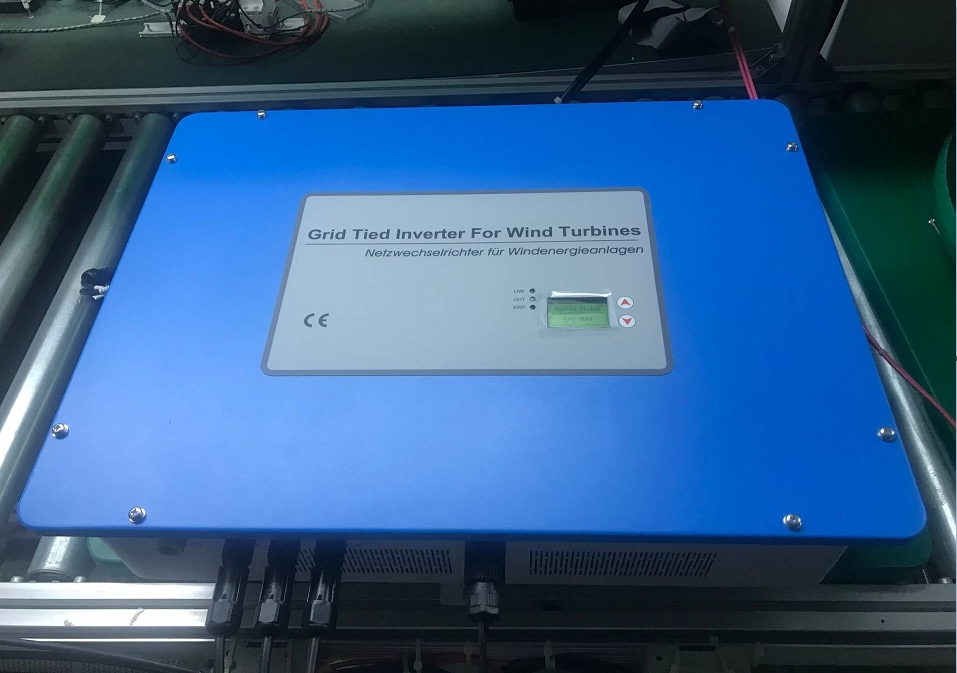

GENERATION-II WIND GRID TIE INVERTER AND WIND-SOLAR HYBRID GRID TIE INVERTER
Product presentation:
The GCI series of Grid Connected inverter or Grid Tied Inverters have been created to handle both wind and PV applications.They are designed to convert the power from wind and PV into utility grade power that can be used by the home or sold to the local electrical utility.With output powers ranging from 2kW to 30kW and a wide input voltage range (30V to 750V), these inverters can handle almost any wind turbine or PV system.With new sophisticated, programmable control and fast responding algorithms, the wind turbine versions out perform any other non dedicated inverters. MPPT algorithms also allow maximum performance when used with PV systems. Maximize your output and minimize your payback period with a GCI inverter today.
Product advantages:
· 40 point programmable, linearly extrapolated power curve, via inverter display, to match the output of a specific wind turbine.
· Ultra wide input voltage range from 20V up to 750V.
· Able to respond to very quick input voltage change and very fast output power response as well.Use current controlled PWM inverter
technology.
· Compact and light design, one-person easy installation.
· IP54 visually pleasing, suitable for installing in a domestic environment.
· Maximum efficiency greater than 94%.
· Use our wind turbine specific grid-connection controlling algorithm, running with high efficiency, safety and reliability.

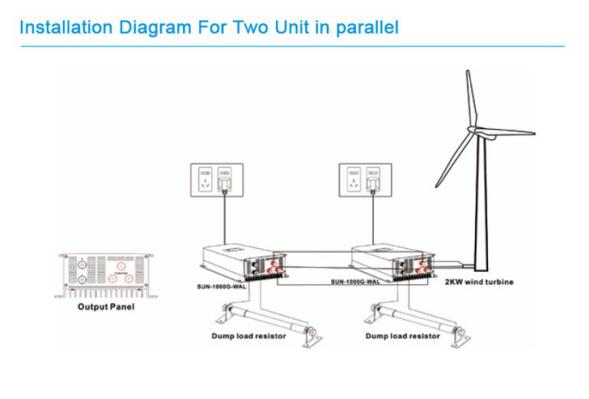

· Stackble for possible multi-units use.

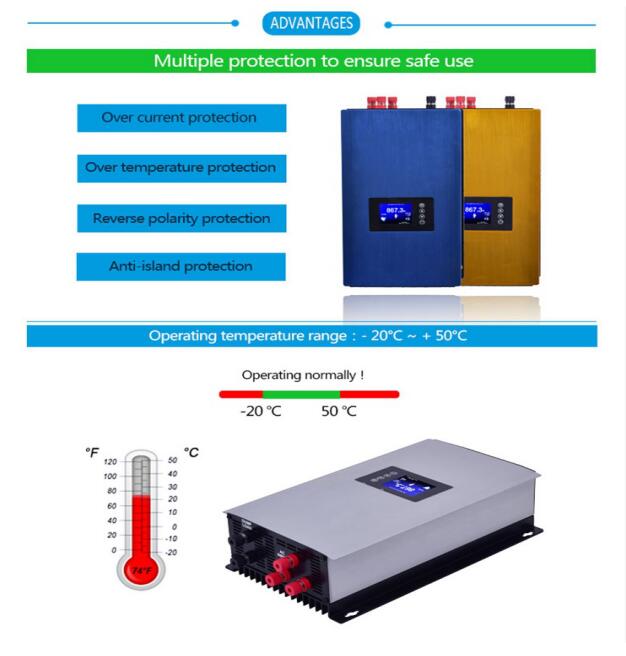

· Highly reliable, numerous protection functions.
· Provides both LCD and LED displays for monitoring various parameters.
· Quick and easy to installation, in according with IEEE929-2000, IEEE1547,UL1741,AS4777.
Main specifications
|
Model |
WG-CTW-2K |
WG-CTW-3K |
CTW-5K |
CTW-10K3 |
CTW-20K3 |
|||
|
Energy Source |
Wind |
Wind |
Wind |
Wind |
Wind |
|||
|
AC Nominal Power (kW) |
2Kw |
3Kw |
5 |
10 |
20 |
|||
|
DC Input Voltage Range (VDC) |
30- 540 |
30-540 |
30-540 |
100-810 |
100-810 |
|||
|
Operating Range Utility Voltage (VAC) |
200 - 260 (adjustable) |
328 - 450 (three phase, adjustable) |
||||||
|
Operating Range Utility Frequency (Hz) |
479- 51 or 59 - 621(adjustable) |
|||||||
|
Configuration |
Input and output is isolation with transformer |
|||||||
|
Total Harmonic Distortion (THD) |
THDAC< 3 % |
|||||||
|
Power Factor |
>0.99 |
|||||||
|
Efficiency |
>94% |
>95.5% |
>95% |
>95% |
||||
|
Utility Monitoring |
Islanding protection VAC, FAC in accordance with UL 1741, IEEE929, G83/1, G59, AS4777, IEEE1547 |
|||||||
|
Communication Interfaces |
RS485 or RS232 |
|||||||
|
Operation Surroundings Temperature |
-25℃ ~ +60℃ |
|||||||
|
Operation Surroundings Humidity |
0 ~ 95% |
|||||||
|
Ingress Protection |
IP65 |
|||||||
|
EMC |
EN50081,part1 |
|||||||
|
EN50082,part1 |
||||||||
|
Grid Interference |
EN61000-3-2 |
|||||||
|
Safety |
Short circuit protection, islanding protection, over heat protection, over load protection |
|||||||
For an inverter to best match the client's entire wind turbine system, we are open to the client's request to modify or design a new system. Please send us an email to inquire about this customized service.
WIND-SOLAR HYBRID GRID TIE INVERTER
|
Model |
CTW-2KS |
CTW-5KS |
CTW-6K3 |
CTW-10K3 |
CTW-20K3 |
|||
|
Energy Source |
Wind/Solar |
Wind/Solar |
Wind/Solar |
Wind/Solar |
Wind/Solar |
|||
|
AC Nominal Power (kW) |
2Kw |
5Kw |
6KW |
10KW |
20KW |
|||
|
DC Input Voltage Range (VDC) |
100- 500 |
100-500 |
100-500 |
100-810 |
100-810 |
|||
|
Operating Range Utility Voltage (VAC) |
200 - 260 (adjustable) |
328 - 450 (three phase, adjustable) |
||||||
|
Operating Range Utility Frequency (Hz) |
479- 51 or 59 - 621(adjustable) |
|||||||
|
Configuration |
Input and output is isolation with transformer |
|||||||
|
Total Harmonic Distortion (THD) |
THDAC< 3 % |
|||||||
|
Power Factor |
>0.99 |
|||||||
|
Efficiency |
>94% |
>95.5% |
>95% |
>95% |
||||
|
Utility Monitoring |
Islanding protection VAC, FAC in accordance with UL 1741, IEEE929, G83/1, G59, AS4777, IEEE1547 |
|||||||
|
Communication Interfaces |
RS485 or RS232 |
|||||||
|
Operation Surroundings Temperature |
-25℃ ~ +60℃ |
|||||||
|
Operation Surroundings Humidity |
0 ~ 95% |
|||||||
|
Ingress Protection |
IP65 |
|||||||
|
EMC |
EN50081,part1 |
|||||||
|
EN50082,part1 |
||||||||
|
Grid Interference |
EN61000-3-2 |
|||||||
|
Safety |
Short circuit protection, islanding protection, over heat protection, over load protection |
|||||||
**Start voltage: Wind DC80V Solar 160Vdc for single-phase inverter; Wind DC180V Solar DC320Vdc for three-phase inverter;**

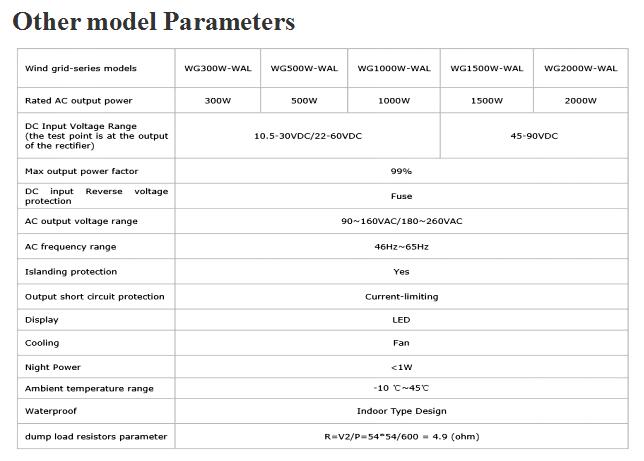

For micro wind grid on system. [300W to 2000W]
We are also supplying 1.5KW/2KW/3KW/5KW/10KW wind grid connected inverter with controller/rectifier built-IN same one unit with DC40-500V or AC 0~450V, if you need to get further more information, please contact us for details:
