SW-1kW wind turbine,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Main Parameter:
The 1KW wind generator (residential wind turbine generator)-fixed pitch-yawing wind turbine is an equipment to convert wind energy into electric power which is changed into storage battery group. 1kw wind turbine generator can be widely used in rich wind areas but without normal energy supply from any power system .It is capable of providing power for lighting, TV, telecommunication equipment and so on.
A． Purpose
The electricity generated by 1kw wind turbine generator can be stored in batteries, through inverter the DC can be changed into AC for power supply; it can also be used as a distribution power supply to delivery electricity to AC380V/AC220V grid.

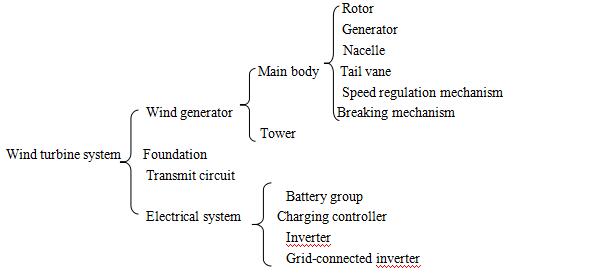

B． structure composing
Technical Parameters
| Model: | SW-1KW |
| Rotor diameter: | 2.8m |
| Blades quantity: | 3pcs |
| Direction: | always upwind |
| Blades material: | Glass fiber reinforced plastic |
| Rated output Power: | 1000W (1KW) |
| Maximum output power: | 1530W(1.53KW) |
| working voltage: | DC24/36/48/96/120/240V,AC220V |
| Annual average energy production: | 2450KWH (in rate 5m/s wind speed) |
| working wind speed: | 3-25m/s |
| Initial wind speed: | 2.5m/s |
| Nominal wind speed: | 9.5m/s |
| Storm-stand: | up to 50m/s |
| Max rotate speed: | 400r/min |
| Wind turbine type: | Three-phase, PMG Alternator |
| Working temperature: | from -40 to +60 C |
| Blade Pitch Control | Fixed Pitch |
| Over Speed Protection | Auto-furl |
| Speed regulation methods: | Yawing and electrical magnet switch |
| Stop Methods | Manual Brake + Hydraulic Brake |
| Gearbox: | None, Direct Drive |
| Batttery full charge time: | about 8 hours |

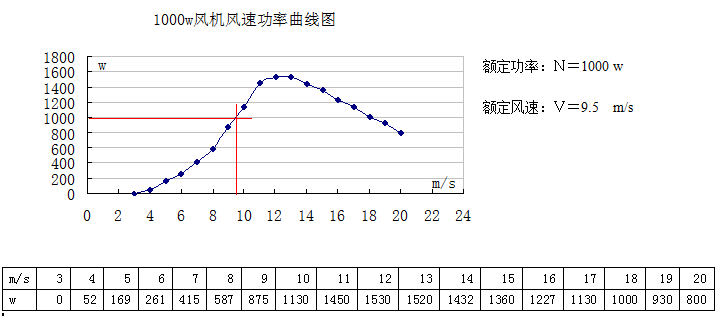

Power Curve
※ Grid off system with battery bank and Grid connected wind turbine sytem without battery
|
r/min |
164 |
218 |
273 |
328 |
382 |
437 |
491 |
546 |
626 |
673 |
727 |
751 |
774 |
787 |
803 |
850 |
|
K w |
0.05 |
0.11 |
0.21 |
0.35 |
0.62 |
0.78 |
1.17 |
1.21 |
1.28 |
1.43 |
1.55 |
1.50 |
1.28 |
1.02 |
0.76 |
0.68 |
※How much energy monthly can be accquired by 1KW wind turbine generator & average wind speed (m/s)?
|
m/s |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
6.5 |
7 |
7.5 |
8 |
8.5 |
9 |
9.5 |
10 |
10.5 |
|
KWH |
75 |
100 |
120 |
150 |
168 |
180 |
198 |
210 |
220 |
235 |
240 |
250 |
270 |
285 |
300 |
315 |
