The SW-50KW-A14 Fixed Pitch Yawing Wind Turbine Light Version Was Welcomed by Market

The sw-50kw-a14 fixed pitch yawing wind turbine light version designed and produced by senwei energy, this unit is equipped with a tail bard and adopts a unique traditional wind control system with automatic mechanical yawing, which is more stable and mature in technology. The high-cost electric yaw-motor equipment and electric  pitch-motor equipment have been banned, and with the 120-130rpm low-speed full power 50KW generator has been matched to achieve low-speed and high-efficiency power performance output. It is the most cost-effective 50KW wind turbine in the Chinese and even the world market at present;

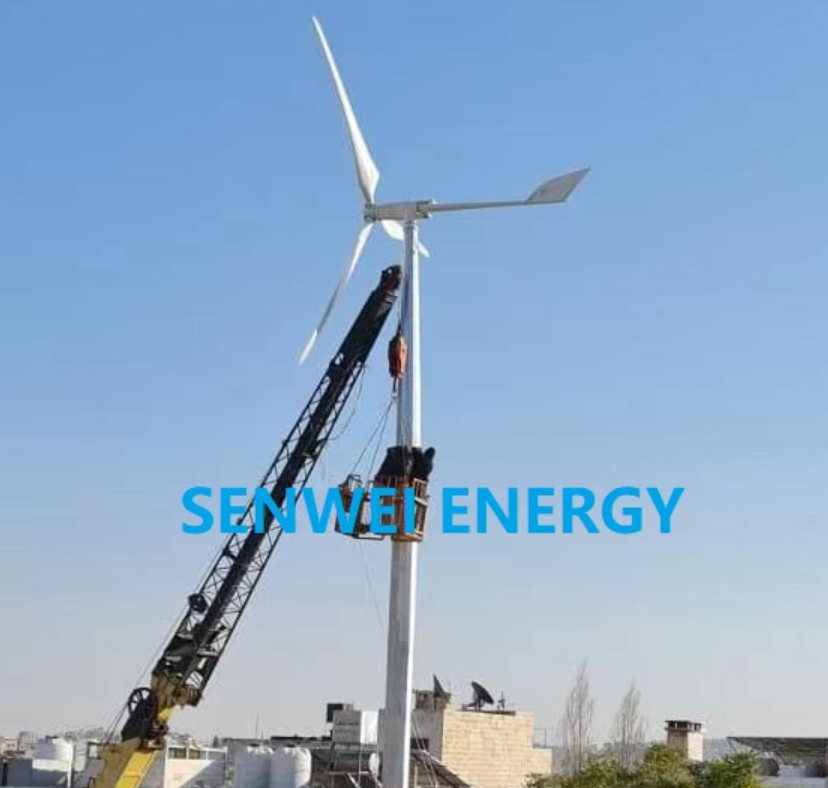

Real Installation Photo @ 50kw @12.5m/s @130RPM

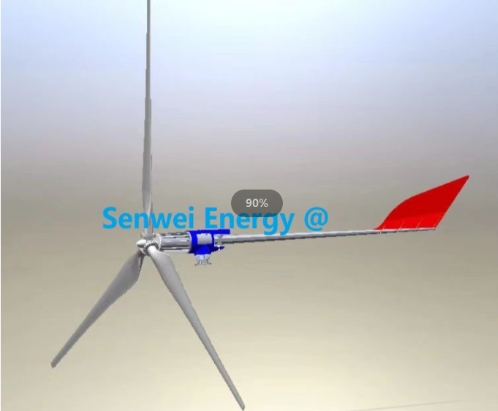

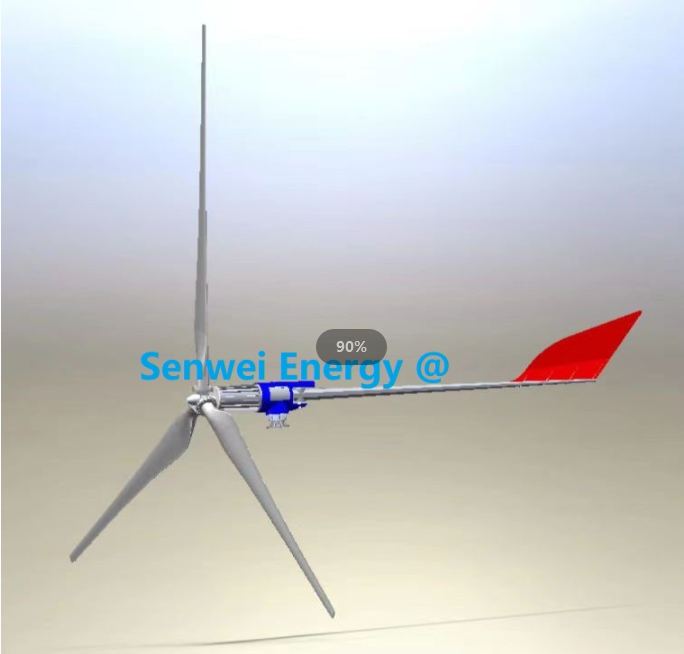

Design Drawing

Technical Parameters:

Wind rotor diameter (m) 14.0
Blade material and quantity Fiber glass reinforced * 3
Rated power / max power (w) 50k/60k
Rated wind speed (m/s) 12.5
Rated rotate speed (rpm) 130
Working wind speed (m/s) 3-25
Startup wind speed (m/s) 3
Survived wind speed (m/s) 50
Working voltage (v) DC500v/650v AC400V
Battery voltage / capacity (v, ah) 12*40=480 / 200
Speed regulation method: Yawing and automatic electric-magnetic brake+ handle brake
Stop method: Manual brake
Generator style Three phase, permanent magnet
Wind turbine weight (kg) 2450
AA Tower height / weight (m/kg) 18/3600
AAA Tower height / weight (m/kg) 24/4600

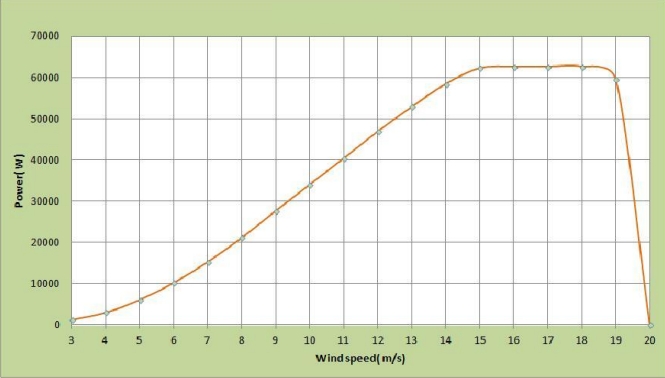

Power Curve
