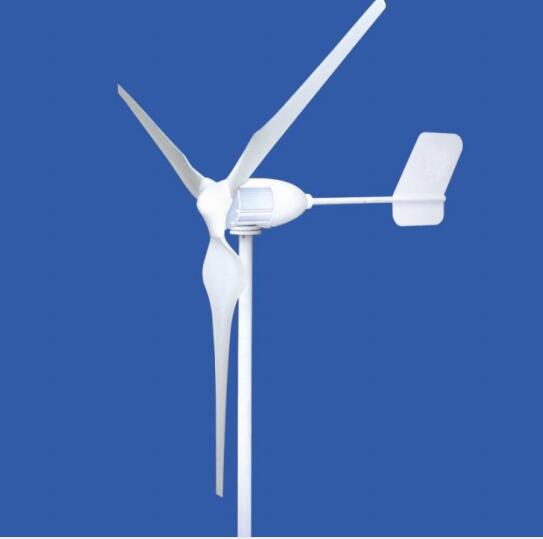

mini wind turbine 100-1KW,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Main Parameter:
Mini wind turbine generators 100W-1000W(1kw) from China SENWEI are total meet European standard and America Standard, like IEC 61400 series standards, and CE certified, ISO9001 and CAN/CSA-F416-87 (R2004)/ CAN/CSA-F417M91 (R2004), with the perfect appearance, performance and the most competitive price, mini wind turbine have already received the most popular from oversea and domestic market customers, hope you like our new concept style series mini wind turbine, since its real excellence in quality with the best price!
The new style series mini wind turbine has below advantages:
1> Exposed parts are made by stainless steel or have passed special long time effective rust protection treatment, so the outside of those parts dont need maintenance.
2>generator has adopted high grade SKF bearings and high grade lithium grease, the bearings need to be checked after operating for 5 years, if it is necessary, add some grease to the bearings.
3> The wind generator adopt brush less type.
4> When the wind over-speed, the speed regulation methods automatic by electromagnetic braking which was controlled by controller, and by the tail yawing two ways.
5> The wind generator could keep working with lower wind velocity-even breeze, just need 2.0-3.0m/s to start-up.
6> If windy enough it could generate more power than same types wind mill.
7> Mini wind turbine could work in more wicked environment that is 45m/s storm, which some types only bear at most 40m/s storm.
8> More steady so that Less noisy, the wind turbine noisy level<35db.
9> Mini wind turbine also have fine-looking at the appearance!
10> its wind generator life time span more than 20years.
Technical parameters:
| Rotor diameter: |
1.2m-1.3m-1.4m-1.5m-1.6m-1.7m-1.8m-2.0m-2.4m |
|
Blades quantity: |
3pcs |
|
Direction: |
always upwind |
|
Blades material: |
Glass fiber reinforced plastic |
|
Rated output Power: |
100W-200W-300W-400W-500W-600W-700W-800W-1000W |
|
Maximum output power: |
130W-220W-310W-410W-510W-610W-720W-820W-1050W |
|
working voltage: |
DC12V/24/36V/48V/96V,AC220V |
|
working wind speed: |
3-20m/s |
|
Initial wind speed: |
2.0m/s |
|
Nominal wind speed: |
11.0m/s |
|
Storm-stand: |
up to 40m/s |
|
Max rotate speed: |
450r/min |
|
Wind turbine type: |
Three-phase, PMG (on constant magnets) |
|
Working temperature: |
from -40 to +60 C |
|
Stop Methods |
Brake by Hand Drag |
|
Battery voltage(V)/capacity(AH): |
12*2/150 |
|
Speed regulation method: |
Yawing and electric magnet dumping |
|
Accumulators full charge time: |
about 8 hours |
|
Mast height/weight: |
6m/8m - optional /65kg |
|
Weight: |
5kg-5.2kg-5.6kg-6.8kg-9.8kg-15.5kg-21kg-30kgs |
Small Household Wind Turbine Generator from 100W 500W to 1000W (1KW)-mini wind turbine
New Variable Pitch Controlled Wind turbine From 5kw 10kw 20kw 30KW
New Low Cost China Wind turbines From 5kw 10kw 20kw 30KW
Yawing Wind Turbine's Blades From 500W 1KW 2KW 3KW 5KW 10KW 20KW pitch controlled
wind and solar hybrid system combination for off-grid or grid-connected system-10kw-SW-mini wind turbine
PMG(Generator) for directly-drive wind turbine without gear box,3-phase output for rectifier

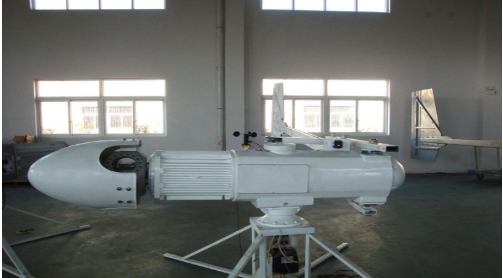

small residential wind turbine generator (PM alternator) in testing before delivering out-mini wind turbine
